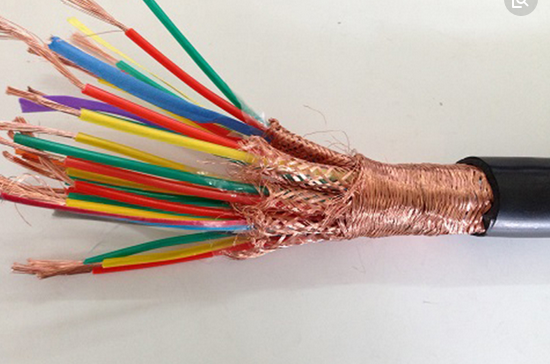

屏蔽电缆RVVP RVVP1
标准 : 屏蔽电缆RVVP RVVP1执行JB 8734.5-1998
■ 产品说明
额定电压：300/300V， 额定温度：70℃
导体使用绞线0.08-1.5mm2裸铜丝
PVCJ缘
镀锡或裸软铜线缠绕或编织屏蔽
PVC护套
可通过GB 12666.2垂直耐燃试验
使用标准厚度、易剥、易裁
具有抗酸碱、耐油、防潮、防霉、环保等特性
■ 应用
适用于电器、仪表和电子设备及自动化装置用连线
型号 | 异体 | 芯数 | J缘 | 屏蔽 | 护套 | 大异体电阻20℃ | 小J缘电阻 Max 70℃ | 耐电压 AC 5 min | 标准长度 | |||||
标准截面 | 线数/线径 | 直径 | 标称厚度 | 标称外径 | 缠绕/编织 | 标称厚度 Nom. | 标称外径 . | 大外径 |
| |||||
mm2 | No./mm | mm | No. | mm | mm | mm | mm | mm | mm | Ω/Km | MΩ.Km | V | (M) | |
RVVP1 | 0.08 | 7/0.12 | 0.37 | 1 | 0.4 | 1.17 | 0.10 | 0.4 | 2.20 | 2.5 | 247.0 | 0.018 | 1500 | 500 |
2 | 0.10 | 3.40 | 4.2 |
|
|
|
|
|
|
|
|
|
|
|
0.12 | 7/0.15 | 0.46 | 1 | 0.4 | 1.26 | 0.10 | 0.4 | 2.30 | 2.6 | 158.0 | 0.016 | 1500 |
|
|
2 | 0.10 | 0.6 | 4.00 | 4.9 | 300 |
|
|
|
|
|
|
|
|
|
3 | 0.10 | 4.10 | 5.1 |
|
|
|
|
|
|
|
|
|
|
|
4 | 0.15 | 4.60 | 5.8 |
|
|
|
|
|
|
|
|
|
|
|
5 | 0.15 | 5.00 | 6.2 |
|
|
|
|
|
|
|
|
|
|
|
0.2 | 12/0.15 | 060 | 1 | 0.4 | 1.40 | 0.10 | 0.4 | 2.40 | 2.8 | 92.3 | 0.016 | 1500 | 500 |
|
2 | 0.10 | 0.6 | 4.20 | 5.3 | 300 |
|
|
|
|
|
|
|
|
|
3 | 0.15 | 4.60 | 5.8 |
|
|
|
|
|
|
|
|
|
|
|
4 | 0.15 | 4.90 | 6.2 |
|
|
|
|
|
|
|
|
|
|
|
5 | 0.15 | 5.30 | 6.7 |
|
|
|
|
|
|
|
|
|
|
|
0.3 | 16/0.15 | 0.69 | 1 | 0.5 | 1.69 | 0.10 | 0.4 | 2.70 | 3.1 | 69.2 | 0.014 | 1500 | 500 |
|
2 | 0.15 | 0.6 | 4.90 | 6.2 | 300 |
|
|
|
|
|
|
|
|
|
3 | 0.15 | 5.20 | 6.5 |
|
|
|
|
|
|
|
|
|
|
|
4 | 0.15 | 5.60 | 7.0 | 200 |
|
|
|
|
|
|
|
|
|
|
5 | 0.15 | 6.10 | 7.6 |
|
|
|
|
|
|
|
|
|
|
|
RVVP | 0.08 | 7/0.12 | 0.37 | 1 | 0.4 | 1.17 | 16/3/0.10 | 0.4 | 2.40 | 2.9 | 247.0 | 0.018 | 1500 | 500 |
2 | 16/4/0.10 | 3.60 | 4.2 | 300 |
|
|
|
|
|
|
|
|
|
|
16/4/0.10 | 2.4×3.6 | 2.9×4.2 |
|
|
|
|
|
|
|
|
|
|
|
|
0.12 | 7/0.15 | 0.46 | 1 | 0.4 | 1.26 | 16/3/0.10 | 0.6 | 2.50 | 3.0 | 158.0 | 0.016 | 1500 | 500 |
|
2 | 16/4/0.10 | 4.20 | 4.9 | 300 |
|
|
|
|
|
|
|
|
|
|
16/4/0.10 | 2.9×4.2 | 3.4×4.9 |
|
|
|
|
|
|
|
|
|
|
|
|
3 | 16/4/0.10 | 4.40 | 5.1 |
|
|
|
|
|
|
|
|
|
|
|
4 | 16/4/0.15 | 4.90 | 5.8 |
|
|
|
|
|
|
|
|
|
|
|
5 | 16/4/0.15 | 5.30 | 6.2 |
|
|
|
|
|
|
|
|
|
|
|
6-7 | 16/4/0.15 | 5.60 | 6.6 | 200 |
|
|
|
|
|
|
|
|
|
|
10 | 16/5/0.15 | 6.90 | 8.1 |
|
|
|
|
|
|
|
|
|
|
|
12 | 16/6/0.15 | 7.10 | 8.3 |
|
|
|
|
|
|
|
|
|
|
|
0.2 | 12/0.15 | 0.60 | 1 | 0.4 | 1.40 | 16/4/0.10 | 0.4 | 2.60 | 3.2 | 92.3 | 0.013 | 1500 | 500 |
|
2 | 16/4/0.10 | 0.6 | 4.40 | 5.3 | 300 |
|
|
|
|
|
|
|
|
|
16/4/0.10 | 3.0×4.4 | 3.6×5.3 |
|
|
|
|
|
|
|
|
|
|
|
|
3 | 16/4/0.15 | 4.90 | 5.8 |
|
|
|
|
|
|
|
|
|
|
|
4 | 16/4/0.15 | 5.20 | 6.2 |
|
|
|
|
|
|
|
|
|
|
|
5 | 16/4/0.15 | 5.60 | 6.7 | 200 |
|
|
|
|
|
|
|
|
|
|
6-7 | 16/4/0.15 | 6.00 | 7.2 |
|
|
|
|
|
|
|
|
|
|
|
10 | 16/4/0.15 | 0.8 | 7.80 | 9.3 |
|
|
|
|
|
|
|
|
|
|
12 | 16/4/0.15 |
|
|
|
|
|
|
|
|
|
|
|
| |
