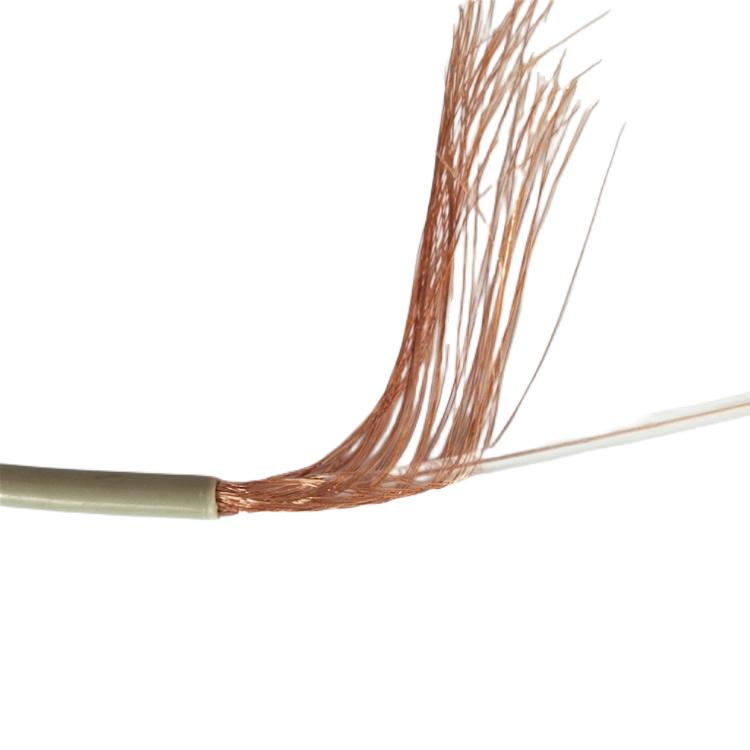

同轴线 RG-304
产品特性·抗电磁干扰和柔软性良好，不仅重量轻,并且具有耐高温、耐潮湿、耐腐蚀等特点，屏蔽、衰减、驻波等指标具备优良的电气性能。
·不含有害物质，符合ROHS标准
应用范围·: 同轴线 RG-304广泛应用于通信、航空、智能机器人、军事等领域。
技术参数:
型号 | 导体材质 | 绝缘材质 | 屏蔽材质 | 护套材质 | 导体结构 | 绝缘直径(mm) | 屏蔽外径(mm) | 护套外径(mm) |
RG178 | 镀银铜包钢线 | PTFE | 单层镀银铜线编织 | FEP | 7/0.102 | 0.86 | 1.3 | 1.83 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RG178FEP | 镀银铜包钢线 | FEP | 单层镀银铜线编织 | FEP | 7/0.102 | 0.88 | 1.3 | 1.83 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RG316 | 镀银铜包钢线 | PTFE | 单层镀银铜线编织 | FEP | 7/0.175 | 1.52 | 1.95 | 2.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RG316D | 镀银铜包钢线 | PTFE | 双层镀银铜线编织 | FEP | 7/0.175 | 1.52 | 2.4 | 2.9 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RG316FEP | 镀银铜线 | FEP | 单层镀银铜线编织 | FEP | 7/0.175 | 1.52 | 1.95 | 2.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RG393 | 镀银铜线 | PTFE | 双层镀银铜线编织 | FEP | 7/0.792 | 7.24 | 8.5 | 9.91 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RG142 | 镀银铜包钢线 | PTFE | 双层镀银铜线编织 | FEP | 1/0.93 | 3 | 3.95 | 4.95 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RG304 | 镀银铜包钢线 | PTFE | 双层镀银铜线编织 | FEP | 1/1.5 | 4.7 | 5.7 | 7.11 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RG179 | 镀银铜包钢线 | PTFE | 单层镀银铜线编织 | FEP | 7/0.102 | 1.6 | 2.04 | 2.54 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RG179D | 镀银铜包钢线 | PTFE | 双层镀银铜线编织 | FEP | 7/0.102 | 1.6 | 2.5 | 3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RG179FEP | 镀银铜包钢线 | FEP | 单层镀银铜线编织 | FEP | 7/0.102 | 1.6 | 2.04 | 2.54 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RG179D | 镀银铜包钢线 | FEP | 双层镀银铜线编织 | FEP | 7/0.102 | 1.6 | 2.5 | 3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RG302 | 镀银铜包钢线 | PTFE | 单层镀银铜线编织 | FEP | 1/0.64 | 3.71 | 4.2 | 5.13 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RG303 | 镀银铜包钢线 | PTFE | 单层镀银铜线编织 | FEP | 1/0.93 | 3 | 3.5 | 4.32 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RG180 | 镀银铜包钢线 | PTFE | 单层镀银铜线编织 | FEP | 7/0.102 | 2.59 | 3 | 3.56 |
