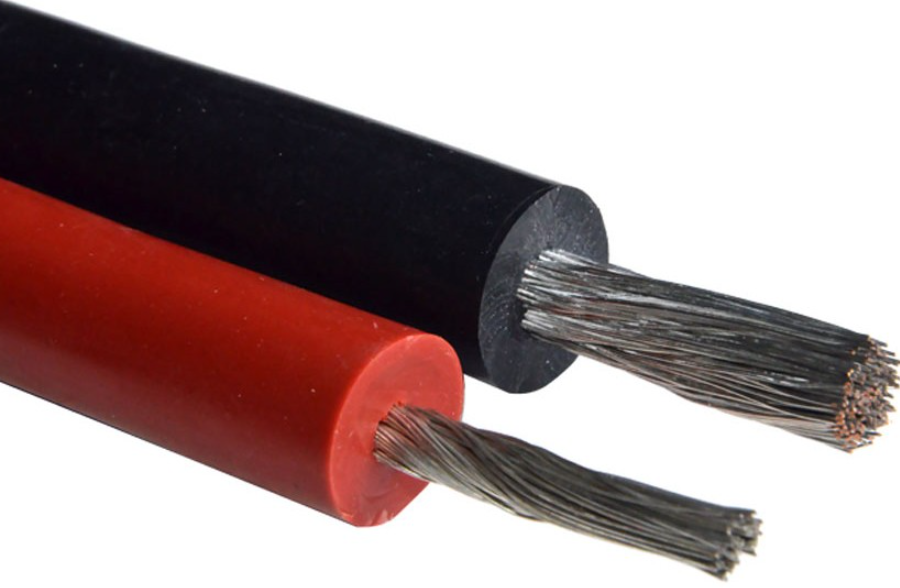

JG,JHXG硅橡胶绝缘电机引接线
1.额定温度：180ºC
2.额定电压：500V,1000V,3000V
3.执行标准：JB 6213
4.导体使用单根或绞合0.5-150mm2镀锡或裸铜丝
5.绝缘采用硅橡胶
6.绝缘厚度均匀，易剥，易裁。
7.产品符合国家有关要求
8.产品广泛用于B级，F级，H级电机引接线
9.电器连接线
产品规格
|
型号 |
导体 |
绝缘 |
***大导体电阻 （Ω/Km,20℃） |
标准长度 |
|||||||
|
|
规格 |
构造 |
外径 |
厚度 |
标称外径 |
||||||
|
|
(No./mm) |
(mm) |
500V |
1000V |
3000V |
500V |
1000V |
3000V |
|||
|
JG |
0.5 |
16/0.2 |
0.95 |
0.8 |
1.4 |
|
2.7 |
3.8 |
|
39 |
300 |
|
0.75 |
24/0.2 |
1.25 |
|
2.9 |
4.0 |
|
26 |
||||
|
1.0 |
32/0.2 |
1.35 |
|
3.1 |
4.2 |
|
19.5 |
||||
|
1.5 |
30/0.25 |
1.65 |
|
3.3 |
4.4 |
|
13.3 |
150 |
|||
|
2.5 |
49/0.25 |
2.1 |
0.9 |
2.8 |
4.0 |
4.9 |
7.7 |
7.98 |
|||
|
4.0 |
56/0.3 |
2.7 |
1.0 |
4.8 |
5.5 |
8.3 |
4.95 |
100 |
|||
|
6.0 |
84/0.3 |
3.3 |
1.5 |
5.6 |
6.6 |
9.2 |
3.3 |
||||
|
10 |
84/0.4 |
4.7 |
1.2 |
7.2 |
7.8 |
10.4 |
1.91 |
||||
|
16 |
126/0.4 |
5.8 |
|
|
9.0 |
11.8 |
1.21 |
|
|||
|
25 |
196/0.4 |
7.4 |
|
1.6 |
|
10.7 |
13.0 |
0.78 |
|||
|
35 |
276/0.4 |
8.6 |
|
|
12.4 |
14.8 |
0.554 |
||||
|
50 |
396/0.4 |
10.4 |
|
1.7 |
|
14.5 |
16.7 |
0.386 |
|||
|
70 |
360/0.5 |
12.5 |
|
1.8 |
|
16.6 |
18.7 |
0.272 |
|||
|
95 |
475/0.5 |
15.3 |
|
2.0 |
3.0 |
|
19.4 |
21.4 |
0.206 |
||
|
120 |
608/0.5 |
17.0 |
|
2.2 |
|
21.4 |
23.0 |
0.161 |
|||
|
150 |
760/0.5 |
17.5 |
|
2.3 |
|
23.2 |
24.5 |
0.129 |
|||
